CELA DT 80 SERIES
Cela DT 80 Truck
Ultimate Mobility.
Mounted on a 7.5-ton chassis with full road registration. Drive directly to the worksite, deploy in minutes, and get to work without permits or trailers.
Overview
An engineering marvel from Cesena, Italy.
The DT Truck 25 is Cela's best-selling industrial platform. With a 82 ft working height it is engineered to exceed expectations and tackle the most demanding tasks with ease.
Its robust, road-legal structure handles heavy loads in construction, maintenance and facility work — drive directly to site and deploy in minutes, no permits or escorts.
Exceptional versatility: the DT Truck 25 accepts a wide range of accessories — material-handling cages, hoist hook, winch — adapting to whatever the day's job requires.
At a glance
Why operators choose the DT 80 Truck.
- Best-selling DT model worldwide
- Mounted on 3.5 T minimum GVW chassis
- 1440° continuous turret rotation
- Hydraulic H+H stabilization
Reach & Specifications
Every working envelope, every number.
The double-telescopic boom delivers a 82 ft vertical reach with a true 39 ft horizontal outreach and a 46 ft up-and-over clearance — the largest working envelope in its class.

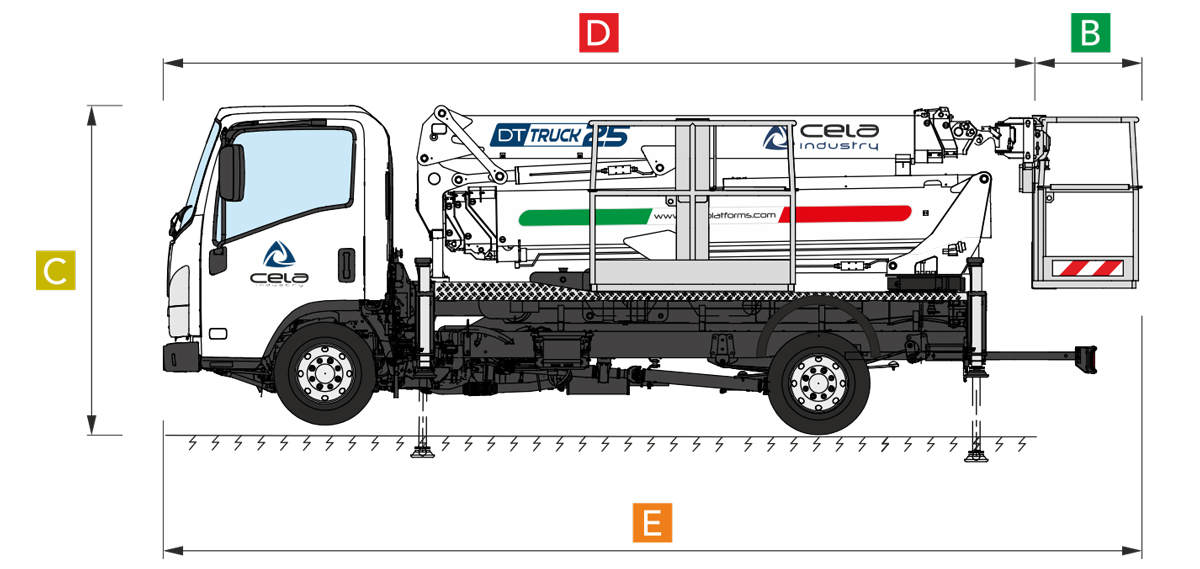

Working envelope · Cela DT 80 Truck
- Working height
- 82 ft
- Negative reach
- −16 ft
- Up & over
- 46 ft
- Horizontal outreach
- 39 ft
- Platform height
- 75 ft
- Basket capacity
- 230 kg / 507 lb
- Hook capacity
- 260 kg / 573 lb
- Turret rotation
- 1440°
- Basket rotation
- 90° + 90°
- Basket dimensions
- 4.6 × 2.3 × 3.6 ft
- Stabilization
- H + H
- Platform controls
- Electronic
Features
Built for the way you work.
Every detail of the Cela DT 80 Truck is engineered for productivity, safety, and total cost of ownership.
In the field
